ASMD1210-110

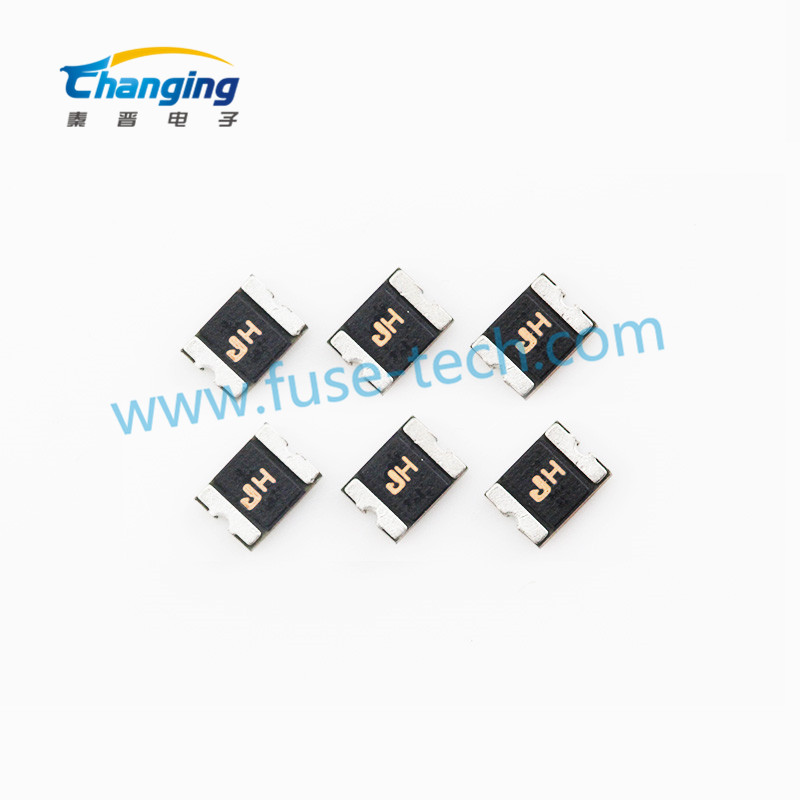

集電通ASMD1210-110貼片型、無鉛、卷盤式包裝自恢復保險絲，應用于高密度線路板，工作電流：0.05-2A，工作電壓：6-30V，工作溫度：-40℃-85℃。
| 型號 | Ihold@25℃(A) | Itrip@25℃(A) | Vmax(V) | Imax(A) | Pdtyp.(W) | Trip current(A) | Trip time(S) | Rimin(Ω) | R1max(Ω) | Data Sheet |
|---|---|---|---|---|---|---|---|---|---|---|
| ASMD1210-260 | 2.60 | 5.20 | 6.0 | 100 | 0.8 | 8.0 | 2.00 | 0.010 | 0.060 |
 |
| ASMD1210-200 | 2.00 | 4.00 | 6.0 | 100 | 0.8 | 8.0 | 1.00 | 0.015 | 0.070 |
|
| ASMD1210-175 | 1.75 | 3.50 | 6.0 | 100 | 0.8 | 8.0 | 0.60 | 0.020 | 0.080 |
|
| ASMD1210-150-12V | 1.50 | 3.00 | 12.0 | 100 | 0.6 | 8.0 | 0.50 | 0.030 | 0.110 |
|
| ASMD1210-150 | 1.50 | 3.00 | 6.0 | 100 | 0.6 | 8.0 | 0.50 | 0.030 | 0.110 |
|
| ASMD1210-110-12V | 1.10 | 2.20 | 12.0 | 100 | 0.6 | 8.0 | 0.30 | 0.050 | 0.230 |
|
| ASMD1210-110 | 1.10 | 2.20 | 6.0 | 100 | 0.6 | 8.0 | 0.30 | 0.050 | 0.210 |
|
| ASMD1210-075-16V | 0.75 | 1.50 | 16.0 | 100 | 0.6 | 8.0 | 0.10 | 0.070 | 0.400 |
|
| ASMD1210-075 | 0.75 | 1.50 | 6.0 | 100 | 0.6 | 8.0 | 0.10 | 0.070 | 0.400 |
|
| ASMD1210-050-24V | 0.50 | 1.00 | 24.0 | 100 | 0.6 | 8.0 | 0.10 | 0.180 | 0.900 |
|
| ASMD1210-050 | 0.50 | 1.00 | 13.2 | 100 | 0.6 | 8.0 | 0.10 | 0.180 | 0.900 |
|
| ASMD1210-035-16V | 0.35 | 0.75 | 16.0 | 100 | 0.6 | 8.0 | 0.20 | 0.200 | 1.300 |
|
| ASMD1210-035-13.2V | 0.35 | 0.75 | 13.2 | 100 | 0.6 | 8.0 | 0.20 | 0.200 | 1.300 |
|
| ASMD1210-035 | 0.35 | 0.75 | 6.0 | 100 | 0.6 | 8.0 | 0.20 | 0.200 | 1.300 |
|
| ASMD1210-020-16V | 0.20 | 0.40 | 16.0 | 100 | 0.6 | 8.0 | 0.02 | 0.400 | 5.000 |
|
| ASMD1210-020-13.2V | 0.20 | 0.40 | 13.2 | 100 | 0.6 | 8.0 | 0.02 | 0.400 | 5.000 |
|
| ASMD1210-020 | 0.20 | 0.40 | 30.0 | 100 | 0.6 | 8.0 | 0.02 | 0.400 | 5.000 |
|
| ASMD1210-010-13.2V | 0.10 | 0.30 | 13.2 | 100 | 0.6 | 0.50 | 0.60 | 1.600 | 15.00 |
|
| ASMD1210-010 | 0.10 | 0.30 | 30.0 | 100 | 0.6 | 0.50 | 0.60 | 0.800 | 15.00 |
|
| ASMD1210-005-60V | 0.05 | 0.15 | 60.0 | 100 | 0.6 | 0.25 | 1.50 | 2.800 | 50.00 |
|
| ASMD1210-005-13.2V | 0.05 | 0.15 | 13.2 | 100 | 0.6 | 0.25 | 1.50 | 2.800 | 50.00 |
|
| ASMD1210-005 | 0.05 | 0.15 | 30.0 | 100 | 0.6 | 0.25 | 1.50 | 2.800 | 50.00 |
|
