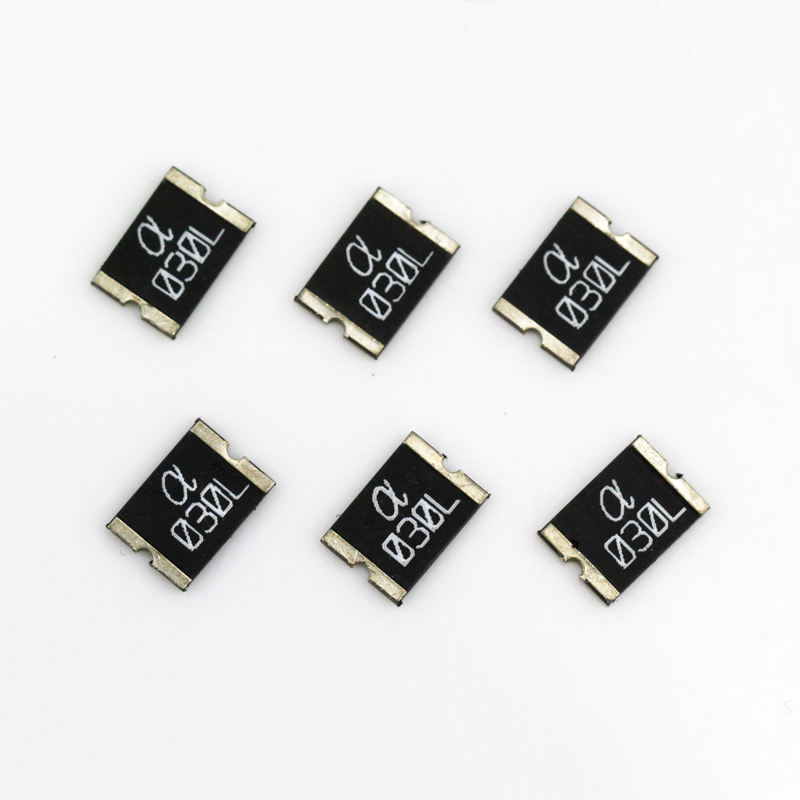

SMD030L
陸海SMD030L
| 型號(hào) | Marking | Ihold@25℃(A) | Itrip@25℃(A) | Vmax(V) | Imax(A) | Pdtyp.(W) | Trip current(A) | Trip time(S) | Rimin(Ω) | R1max(Ω) | Data Sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SMD260L | α260L | 2.60 | 5.20 | 6 | 40 | 1.5 | 8.0 | 10.0 | 0.014 | 0.075 |
 |
| SMD125L | α125L | 1.25 | 2.50 | 33 | 40 | 1.5 | 8.0 | 2.0 | 0.050 | 0.250 |
|
| SMD300L | α300L | 3.00 | 6.00 | 16 | 40 | 1.5 | 8.0 | 20.0 | 0.012 | 0.048 |
|
| SMD250L | α250L | 2.50 | 5.00 | 16 | 40 | 1.5 | 8.0 | 16.0 | 0.020 | 0.085 |
|
| SMD200L | α200L | 2.00 | 4.00 | 16 | 40 | 1.5 | 8.0 | 4.5 | 0.020 | 0.120 |
|
| SMD185L | α185L | 1.85 | 3.70 | 33 | 40 | 1.5 | 8.0 | 2.5 | 0.030 | 0.150 |
|
| SMD150L | α150L | 1.50 | 3.00 | 33 | 40 | 1.5 | 8.0 | 2.0 | 0.035 | 0.230 |
|
| SMD100L | α100L | 1.10 | 2.20 | 33 | 40 | 1.5 | 8.0 | 0.5 | 0.065 | 0.410 |
|
| SMD075L | α075L | 0.75 | 1.50 | 33 | 40 | 1.5 | 8.0 | 0.3 | 0.100 | 1.000 |
|
| SMD030L | α030L | 0.30 | 0.60 | 60 | 10 | 1.5 | 1.5 | 3.0 | 0.600 | 4.800 |
|
| SMD050L | α050L | 0.50 | 1.00 | 60 | 10 | 1.5 | 2.5 | 4.0 | 0.180 | 1.400 |
|
